で my previous blog post, I shared a PowerShell Script which uses the ER/Studio Data Architect COMオートメーション・インターフェース.
During this post, we’ll create an application, using the Microsoft .NET Framework with the language C#, which can also connect to ER/Studio Data Architect.

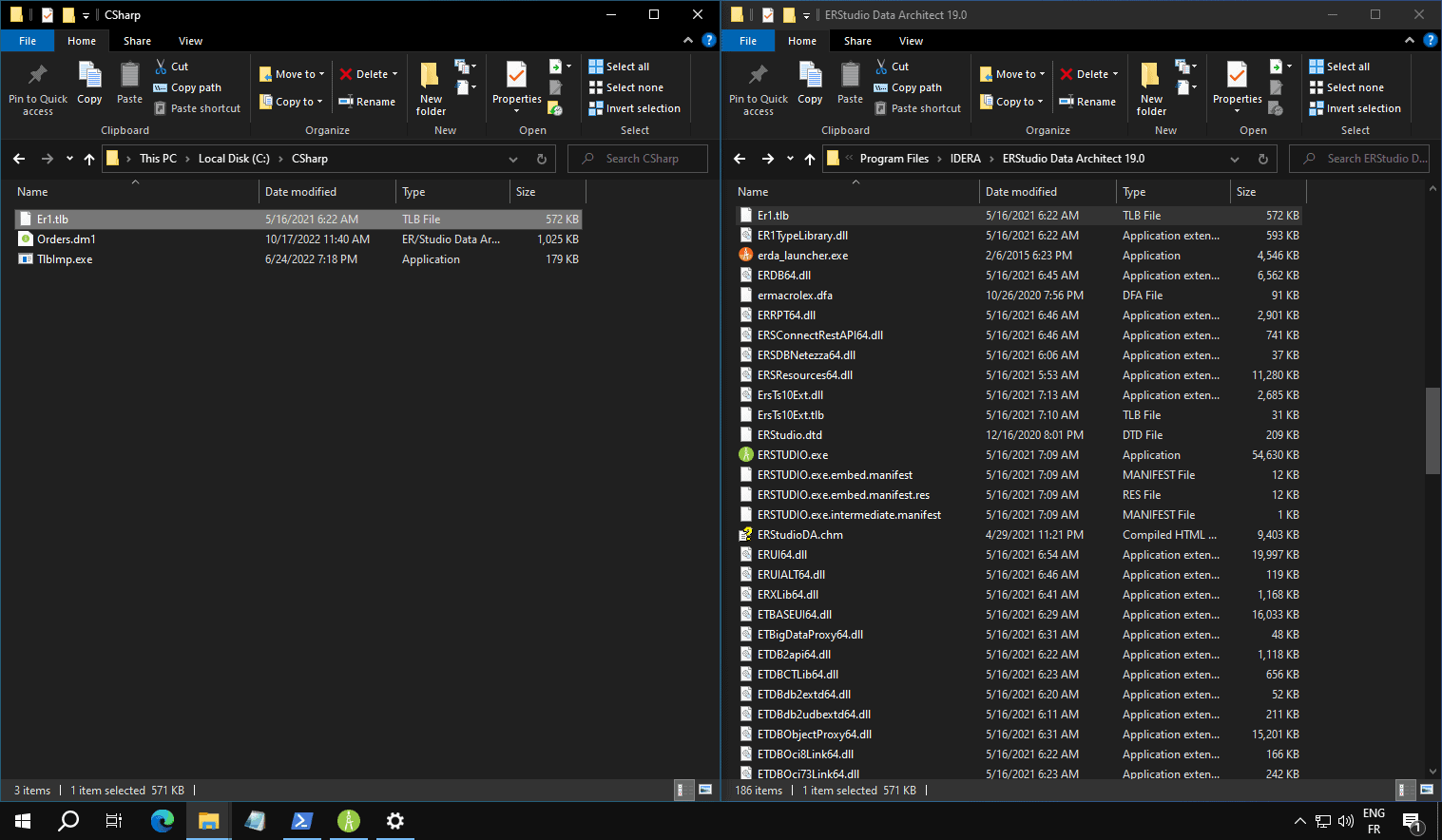

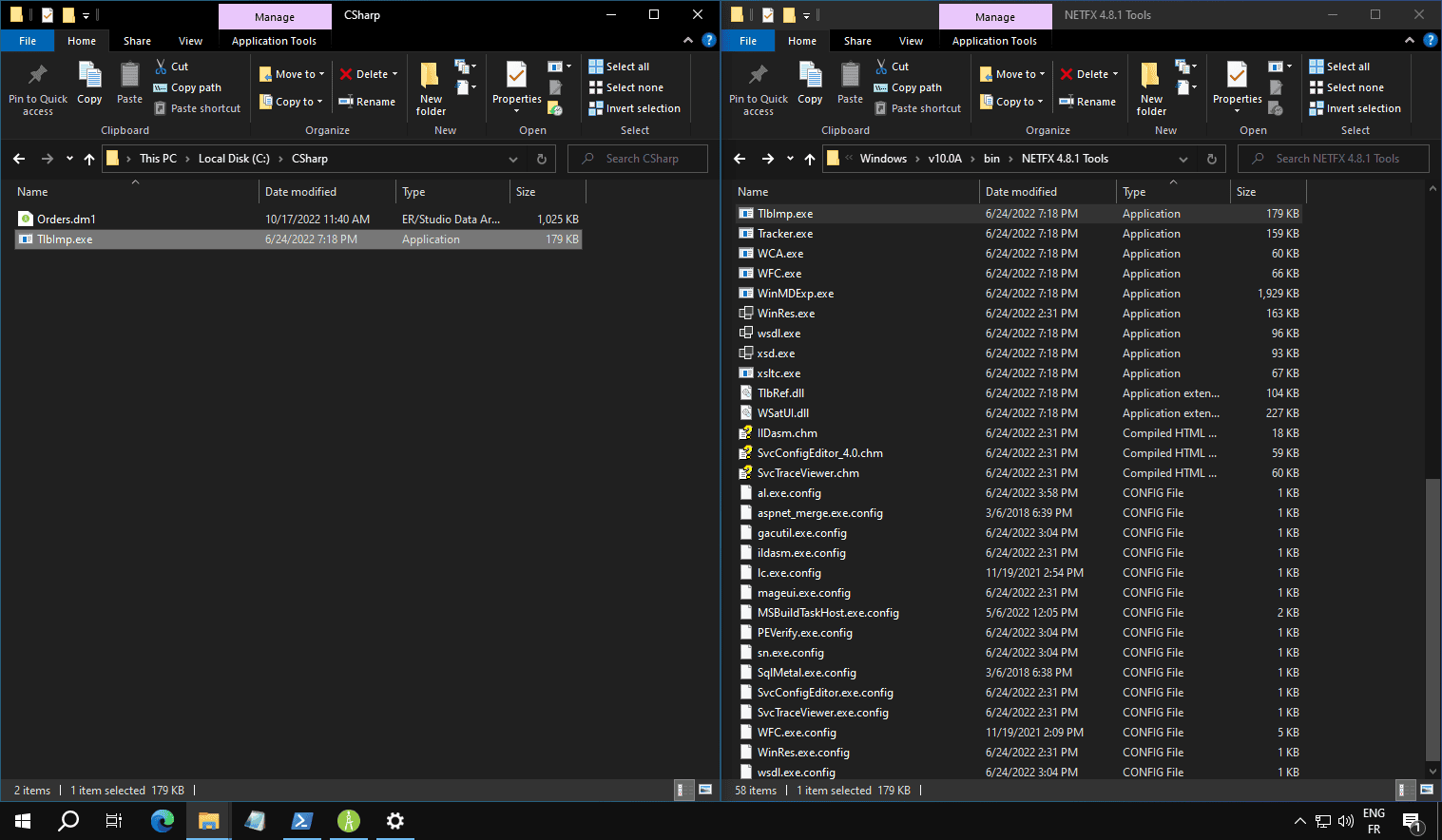

We’ll need the Type Library Importer tool which is included with the .NET Framework for developers and the Microsoft Visual C# Compiler.Firstly, to get access to the ER/Studio Data Architect COMオートメーション・インターフェース, we need to import the definitions of the available objects.
Look at the following script and copy it to your file.
using System; using System.IO; // Use the DLL generated with TlbImp.exe using ERStudio; namespace wERDA { class ERDA { static void Main(string[] args) { // Check the number of parameters if (args.Length != 1) { // Get the ER/Studio Application object ERStudio.Application ers = new ERStudio.Application(); // Create a new Diagram ERStudio.Diagram MyDiagram = ers.NewDiagram(); // Set some Diagram properties MyDiagram.Author = "W."; MyDiagram.Company = "IDERA"; MyDiagram.CopyrightYear = "" + DateTime.Now.Year; Console.WriteLine("New diagram created; Adding an Entity."); // Get the current model ERStudio.Model MyModel = (ERStudio.Model)(MyDiagram.ActiveModel()); // Add a new Entity ERStudio.Entity MyEntity = MyModel.Entities().Add(100, 100); // Set the Entity name MyEntity.EntityName = "Hello"; // Add a new Attribute ERStudio.AttributeObj MyAttribute = MyEntity.Attributes().Add("World!", true); // Set the Notes of the Attribute MyAttribute.Notes = "From C#"; } else { // Check if the first parameter is a valid filepath if (!File.Exists(args[0])) { Console.WriteLine("The DM1 file does not exist!"); return; } Console.WriteLine("Launching ERDA..."); // Get the ER/Studio Application object ERStudio.Application er = new ERStudio.Application(); // Close the diagram we want to open if it's already opened er.CloseDiagram(Path.GetFileName(args[0])); // Open the diagram: First parameter of this application should be a path to a DM1 file ERStudio.Diagram diag = er.OpenFile(args[0]); // Check if diagram has been "opened" if (diag != null) { // Get the list of Models ERStudio.Models mdls = diag.Models(); // Loop on each model foreach (ERStudio.Model mdl in mdls) { // Display the Model Name Console.WriteLine(mdl.Name); // Get the SubModels ERStudio.SubModels submdls = mdl.SubModels(); if (submdls != null) { foreach (ERStudio.SubModel submdl in submdls) { // Display the SubModel ID, SubModel Name and SubModel Parent ID Console.WriteLine("--" + " {" + submdl.ID + "} " + submdl.Name + " [" + submdl.ParentSubmodelID + "]"); // Get the Entity Display Objects ERStudio.EntityDisplays entds = submdl.EntityDisplays(); foreach (ERStudio.EntityDisplay entd in entds) { // Get the Entity from its Entity Display ERStudio.Entity ent = (ERStudio.Entity)(entd.ParentEntity()); // Get the Attributes ERStudio.Attributes atts = ent.Attributes(); // Display the Name of the Entity and its number of attributes Console.WriteLine(" -- " + entd.Name + " [" + atts.Count + "]"); } } } else { Console.WriteLine("submdls is null"); } } Console.WriteLine("Closing " + Path.GetFileName(args[0])); // Close the diagram we opened er.CloseDiagram(Path.GetFileName(args[0])); } else { Console.WriteLine("Diagram can not be opened. Already opened?"); } } } } }
Save the file.
Now, we can compile the script to generate an application: C:\Windows\Microsoft.NET\Framework64\v4.0.30319\csc.exe /reference:ERStudio.dll .\ConnectToDataArchitect.cs
If you move your application, you will need to copy the ERStudio.dll too as it is referenced by the application.
You can also embed the DLL inside your application to only copy your executable.
To do so, just replace the option /reference with the option /link: C:\Windows\Microsoft.NET\Framework64\v4.0.30319\csc.exe /link:ERStudio.dll .\ConnectToDataArchitect.cs
If we look at the script we can see 2 different parts:
このブログ記事で使用したのは
I shared a video (4′) to support this blog post! 👍
